The Wall-it Bicycle Parker is a durable, low-profile, wall-mounted bike rack for indoor or outdoor use. It is sleek, compact, and easy to install. Its rugged components are black powder-coated steel. When not in use, the Wall-it protrudes less than 2 inches from the wall, making it both safe and unobtrusive.

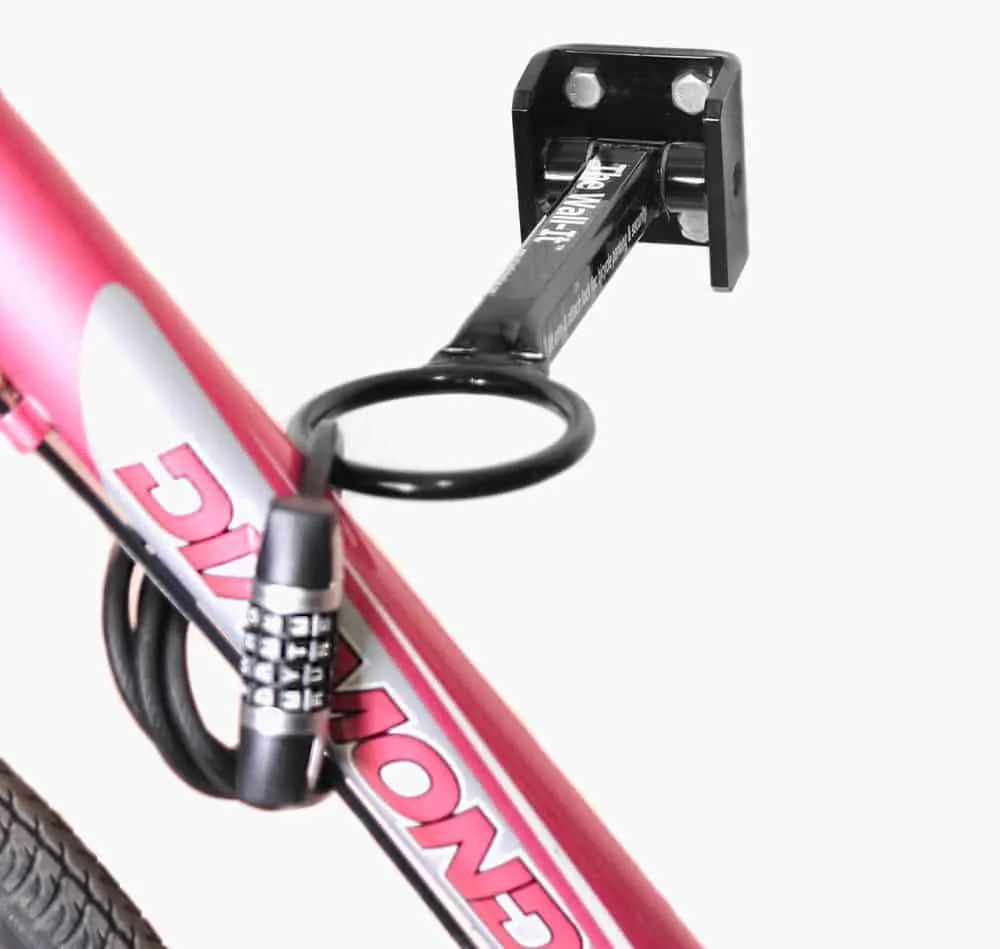

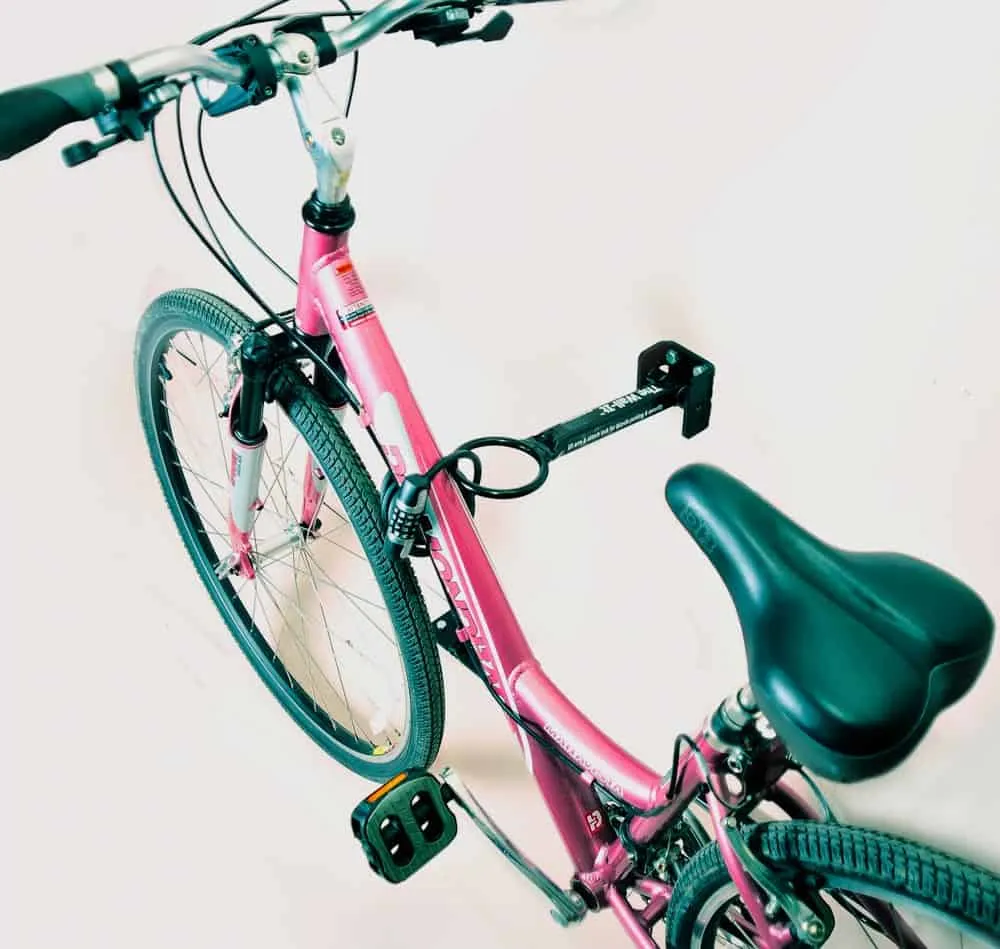

Roll your bike up to the Wall-it, parallel to the wall. Lift the Security Arm up to the bike frame. Insert a u-lock through the ring of the Wall-it arm and lock it to the bike frame for secure upright storage.
Specifications & Technical Information:
Module Technical Specs: Height: 13" Width: 3" Depth: 1 3/4" Weight: 2.7 lbs
Construction: Steel

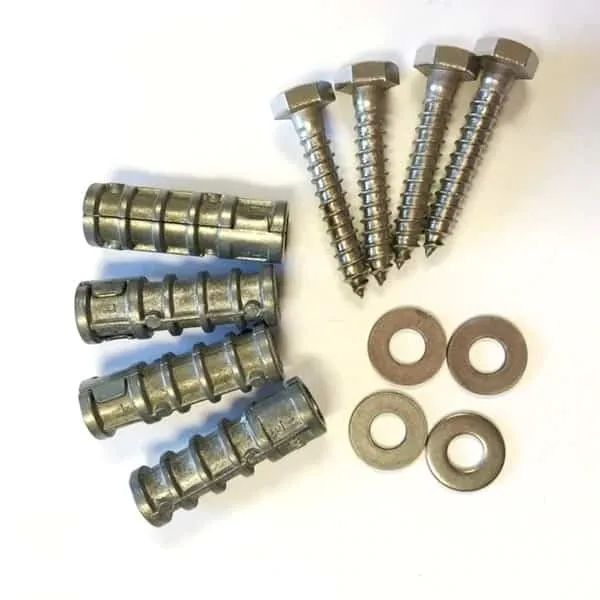

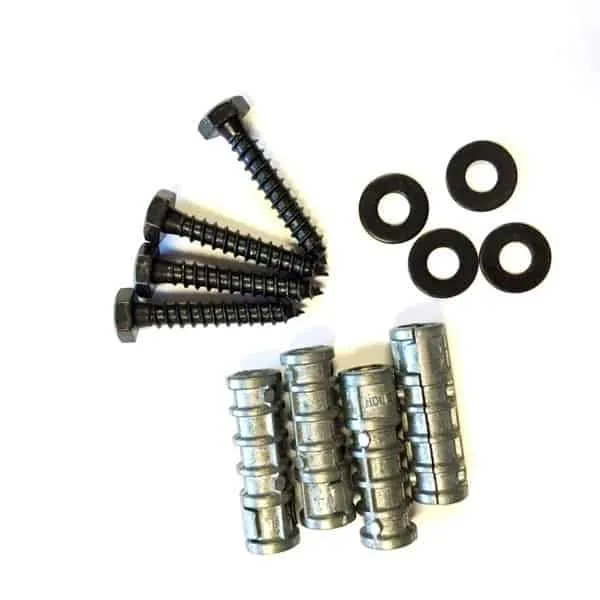

Mounting: Each module has 4 holes in the plate Capacity: One bicycle per module Installation: Mount lower mounting holes centered 25" above the floor or ground Mount upper mounting holes centered 27" above the floor or ground Use touch-up paint specially formulated for powder coat finishes as necessary. 3''x3'' Wall Mounting
Features: Sleek, simple, and compact Security arm provides locking point for stability/security - hangs neatly when not in use Clean precise lines - no visual clutter. Bikes stand upright, no twisting or tilting. Design remains flat against wall and out of the way when not in use. Add more modules as necessary
Outdoor/Indoor Applications: College and School Campuses, Corporate and Commercial Multi-family / Residential Entryways and Porches. Streetscapes, Transportation Hubs, Parking Garages, Trains.
Shipping: 1-3 Business Days.
Standard finish: Powder coated in black
Anticipated product life: 10 years.

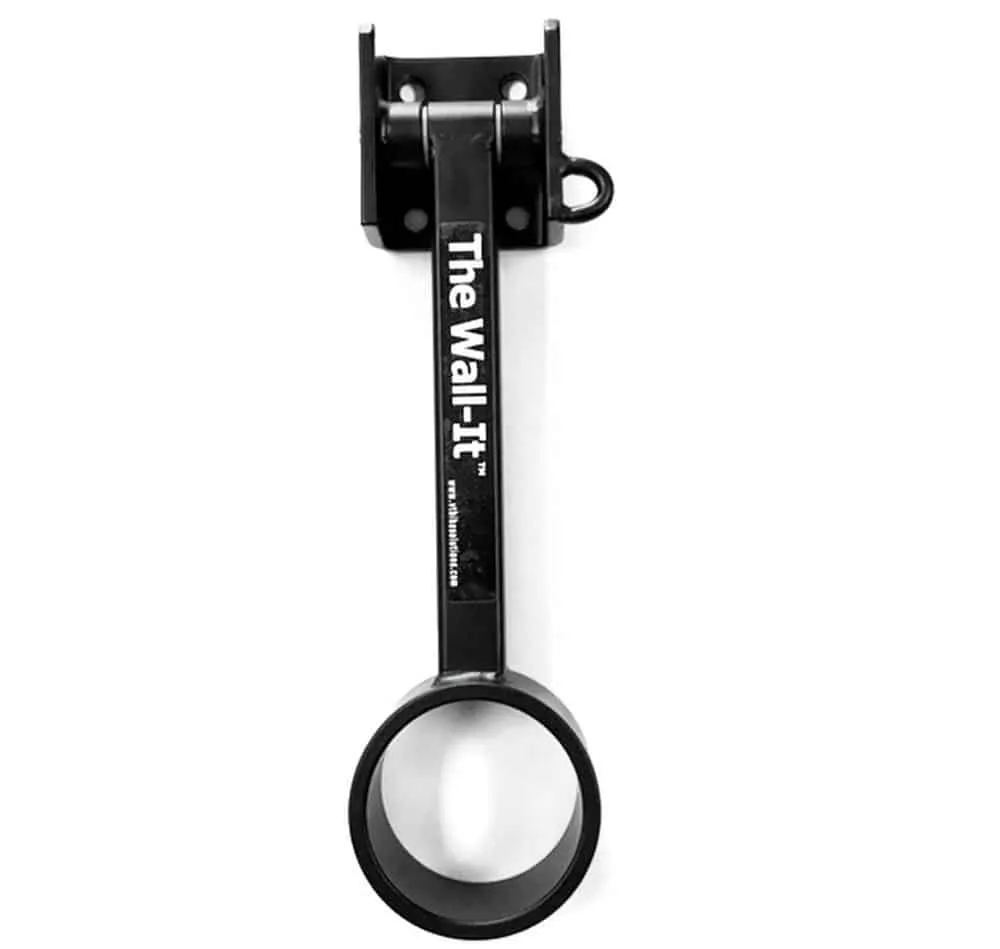

The Wall-It bicycle parking and security device is designed to be very compact and easy to install so bicycle parking and security may be readily located where it is convenient for bike riders. The Wall-It is designed to secure a bicycle parallel to a wall (or next to a post) at a distance just far enough away so the handlebar does not quite touch the wall (1 foot). When not in use gravity pulls the arm of the Wall-It down against the wall so that Wall-It protrudes only 1.75 inches from the wall. To park and secure a bike, the arm of the Wall-It is lifted to approximately a horizontal position and a bike lock or cable is slipped through the ring at the end of the arm and around the frame of the bike as well as through one of the wheels. Preferably the Wall-It is mounted so the arm pivot is 26” above the ground which is the best height for locking to most bike frames. The base of the Wall-It is a flanged steel bracket with mounting holes in the rear for attachment to a wall (or post). The bracket flanges support the pivot housings on each side with the pivoting arm between them. A stainless steel spring pin, pressed through the pivot housings and the pivot end of the arm, joins the arm to the bracket. Durable nylon bushings allow the arm to pivot up and down smoothly. With a stainless steel axle and nylon bushings, the pivot is very strong and will never seize. The ring on the end of the arm is oriented parallel to the wall in order to maintain a low profile.
All information contained on this website is subject to change without notice. Actual products may vary slightly from the products shown in these photos.
WARRANTY: There is a three-year replacement against the manufacturer's defects under conditions of normal use.
